When it comes to CPU and motherboard design, one of the most crucial elements is the socket type — the physical interface connecting the processor to the motherboard. In modern electronics manufacturing, three main socket types dominate: LGA (Land Grid Array), PGA (Pin Grid Array), and BGA (Ball Grid Array). Each has unique advantages, challenges, and use cases.
LGA (Land Grid Array)
In LGA sockets, the pins are located on the motherboard socket, while the processor has flat contact pads. This design minimizes the risk of bending or damaging CPU pins and allows for excellent electrical connectivity and higher pin density.
Common use: Intel desktop and server processors often use LGA sockets (e.g., LGA1700).
Advantages:
- Easier CPU installation and replacement
- Strong electrical contact and stability
- Suitable for high-performance CPUs
PGA (Pin Grid Array)
In PGA designs, the CPU has the pins, which fit into holes in the motherboard socket. This type is commonly used by AMD processors. While it’s simple to install, users must handle CPUs carefully to avoid bending the delicate pins.
Common use: AMD’s AM4 and AM5 sockets.
Advantages:
- Simple manufacturing process
- Reliable mechanical connection
- Easy for DIY repairs and replacements
BGA (Ball Grid Array)
BGA sockets use solder balls instead of pins to connect the CPU directly to the motherboard. The chip is permanently soldered, making it non-removable. BGA designs are compact and ideal for laptops, embedded systems, and mobile devices, where space efficiency is key.
Advantages:
- Excellent electrical performance
- Compact form factor
- Better heat dissipation
Choosing the Right Type

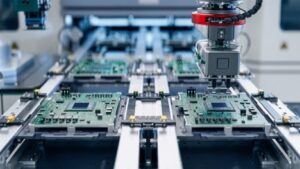

At Xptronics Inc., our expertise in SMT (Surface Mount Technology) and advanced PCB assemblyensures that each connection type—whether BGA, LGA, or PGA—is manufactured with precision and reliability.
The choice of socket type depends on your product’s design goals, performance requirements, and serviceability needs.
